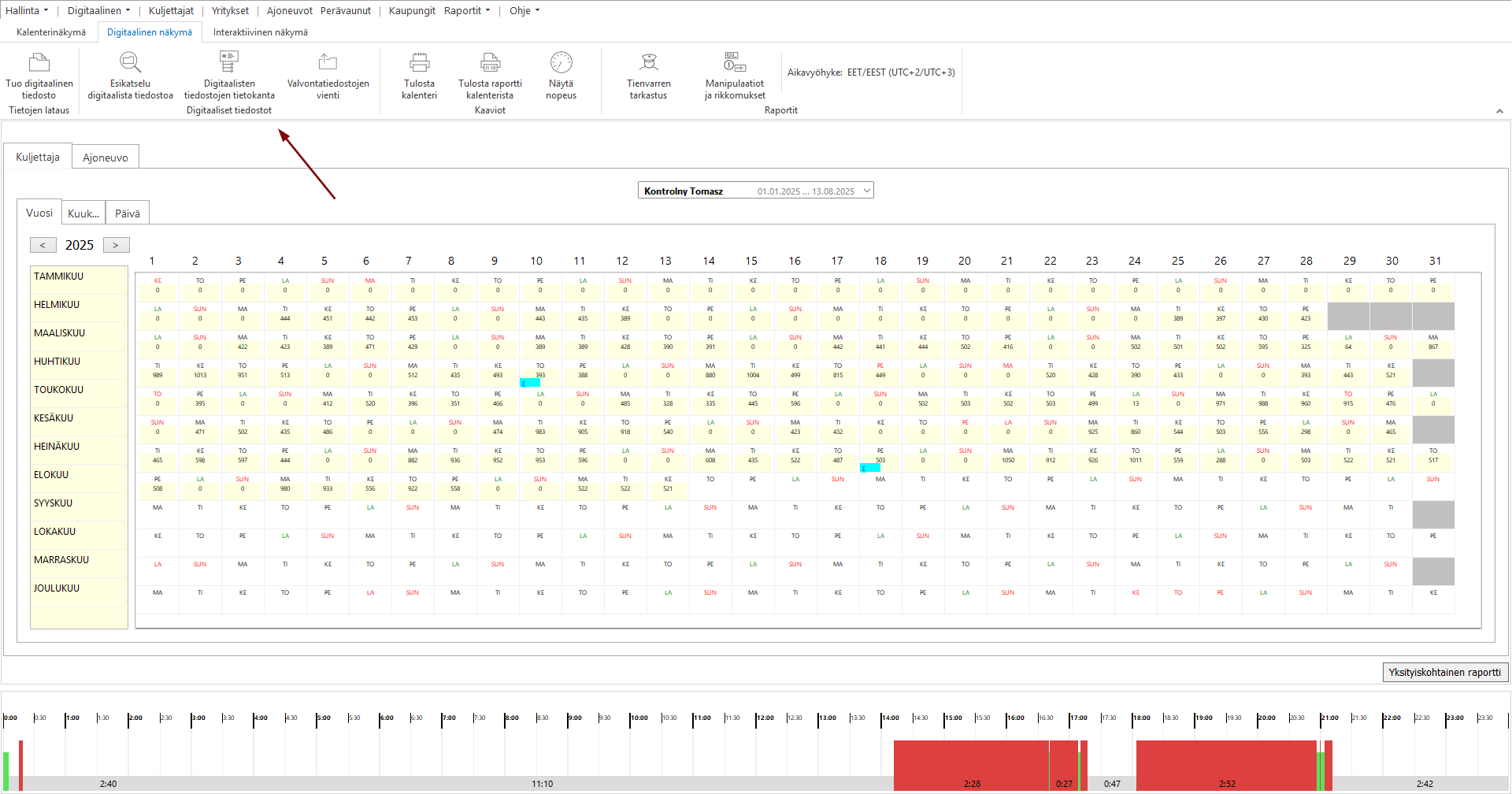

The digital view is primarily used to verify whether events or errors have been recorded in the digital files.

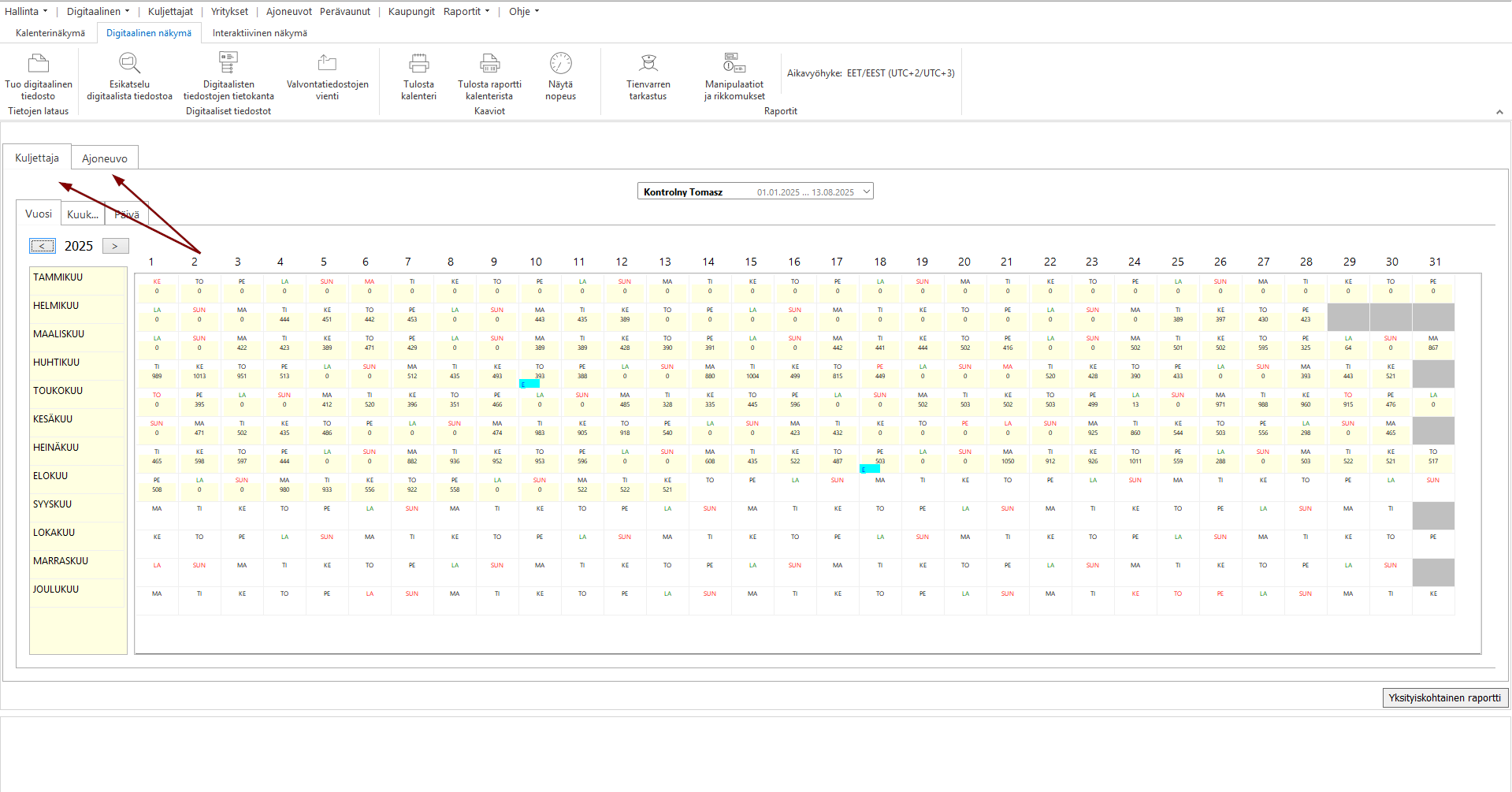

At the top of the window, select whether the data should be displayed from the driver card file or the tachograph file.

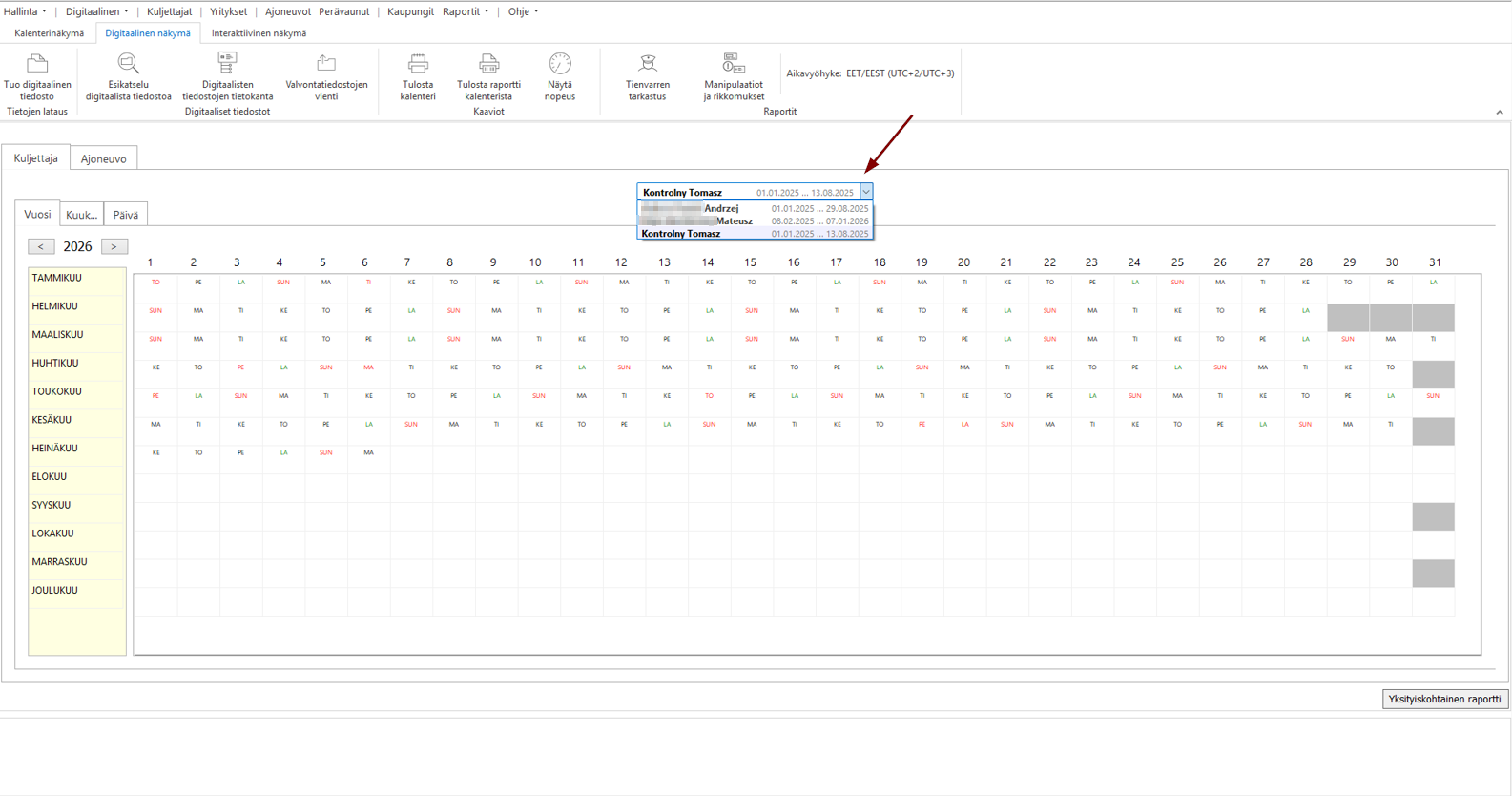

From the drop-down list, select the driver or vehicle you want to review.

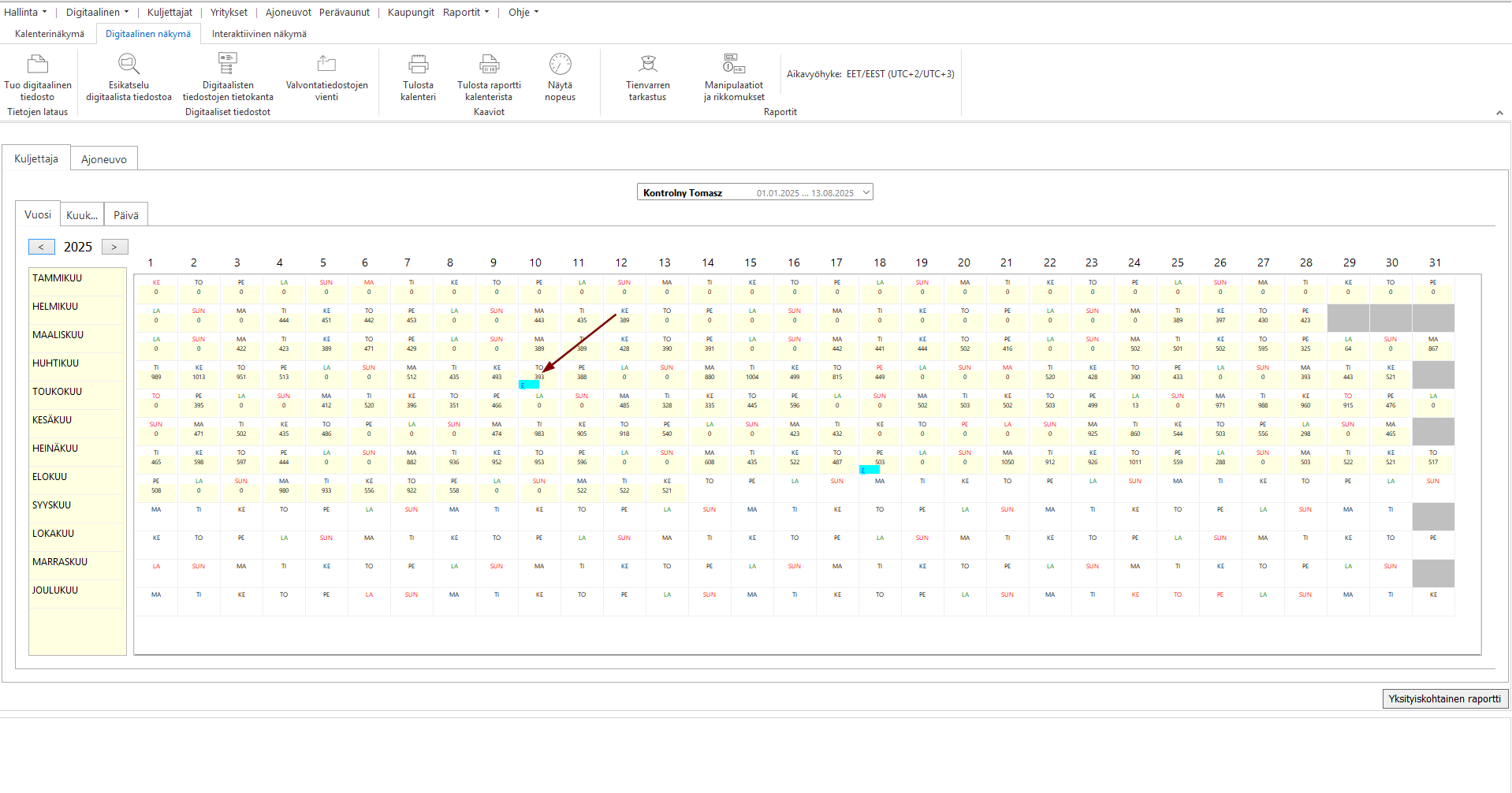

If an event has occurred, the corresponding day will be marked with a blue “E”. If an error has occurred, the corresponding day will be marked with a red “F.”

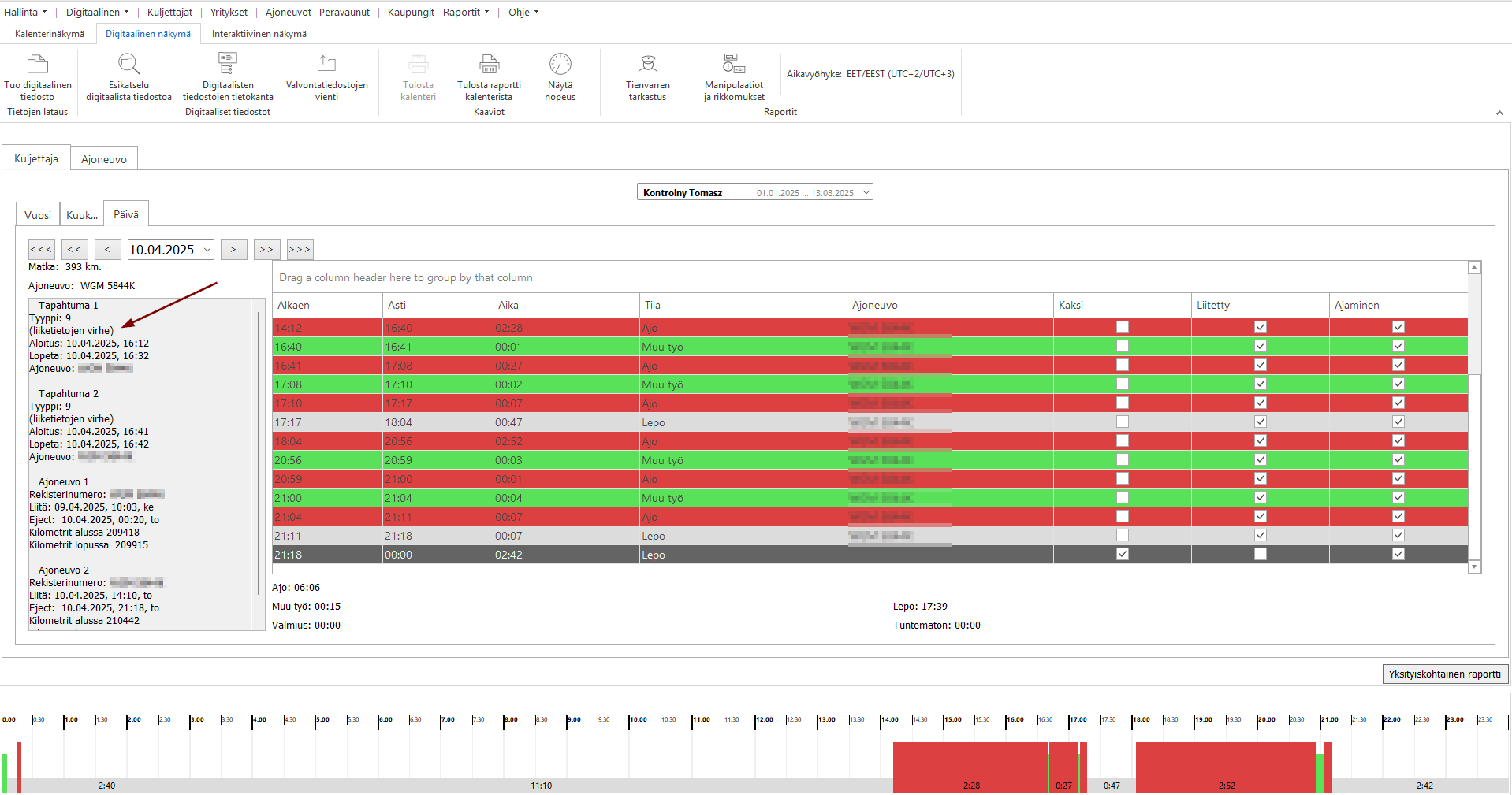

When you double-click a specific day, the program switches to the daily view, where the event or error code and its name are displayed in the table on the left-hand side.

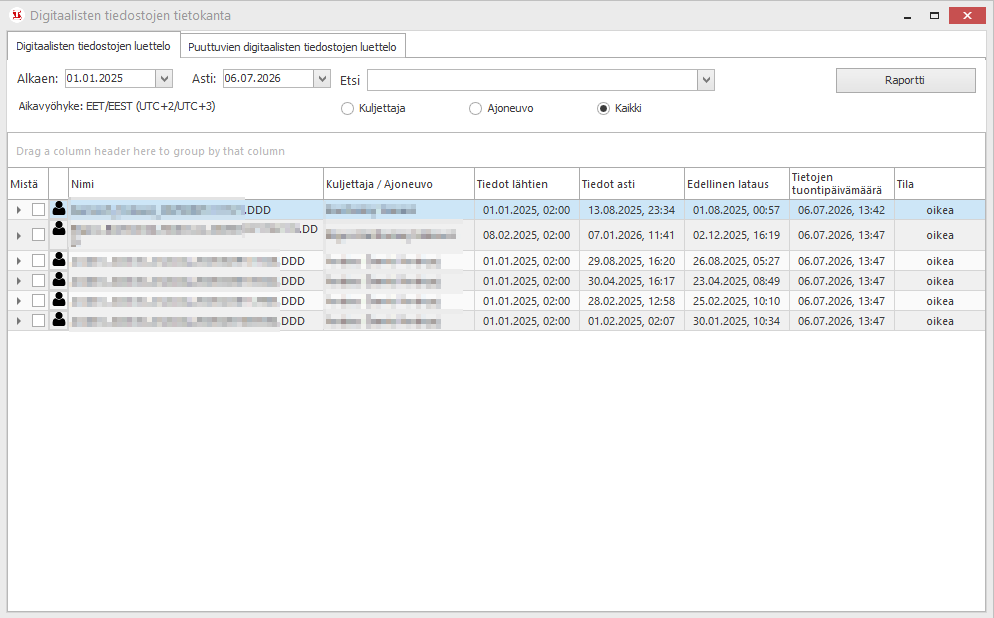

The digital view also includes a digital file repository. The program stores all digital files that have been uploaded to the database.
To retrieve digital files from the database, select the desired time range in the repository window. You can optionally narrow the results by selecting a specific driver or vehicle. The relevant files will then be displayed in a list.
